Using the ETI MicroCal Plus is a great way to simulate and check thermometer accuracies. It’s compatible with a range of thermocouple types including K, J, T, R, N, S and E.

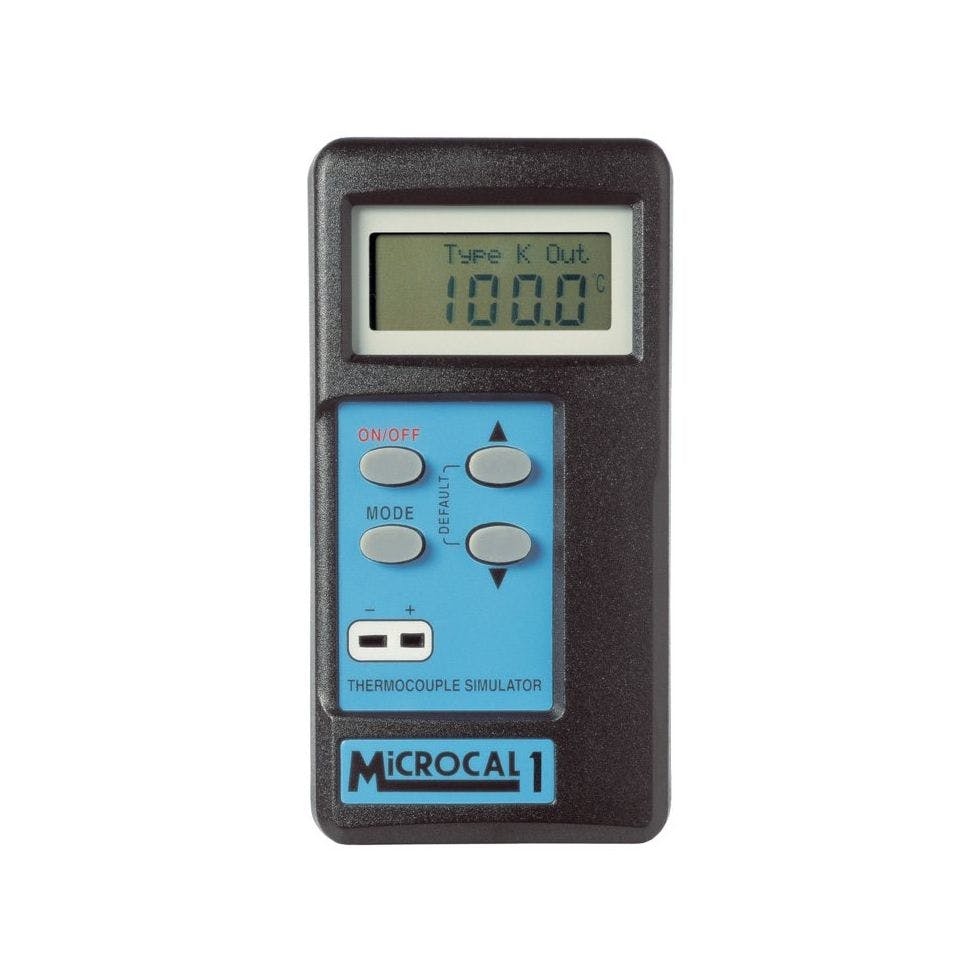

The ETI MicroCal Plus is a thermocouple simulator, designed to check thermometer accuracies in routine operations.
The ETI MicroCal Plus tests thermocouple types K, J, T, R, N, S and E thermometers without the need for specialised equipment or conversion tables. One of the additional features of the MicroCal 1 Plus is its ability to measure and simulate temperature.
The MicroCal 1 Plus comes with a one metre PVC type K thermocouple lead with miniature connectors and a five-point UKAS Certificate of Calibration. The below table shows individual thermocouple ranges.
Type K thermocouple
-200 to 1372°C
Type N thermocouple
-200 to 1300°C
Type J thermocouple
-200 to 1200°C
Type S thermocouple
0 to 1768°C
Type T thermocouple
-270 to 400°C
Type E thermocouple
-140 to 1000°C
Type R thermocouple
0 to 1768°C
Key Features
10mm LCD display has an alpha-numeric display line
User is prompted when changing parameters
Selectable parameters - °C/°F, enable/disable, CJC and internal/external display
Auto power-off function after a period of inactivity
Optional lead set available- pack of 7 leads (click here)
Specifications
Dimensions
35 x 73 x 141 mm
Weight
220 grams
Range
See table for individual thermocouple ranges
Temp Points
12 adjustable presets
Accuracy
±0.3°C (dependent on thermocouple type)
Battery & Battery Life
2 x 1.5 volt AAA (alkaline – 300 hours)
Guarantee
2 years
