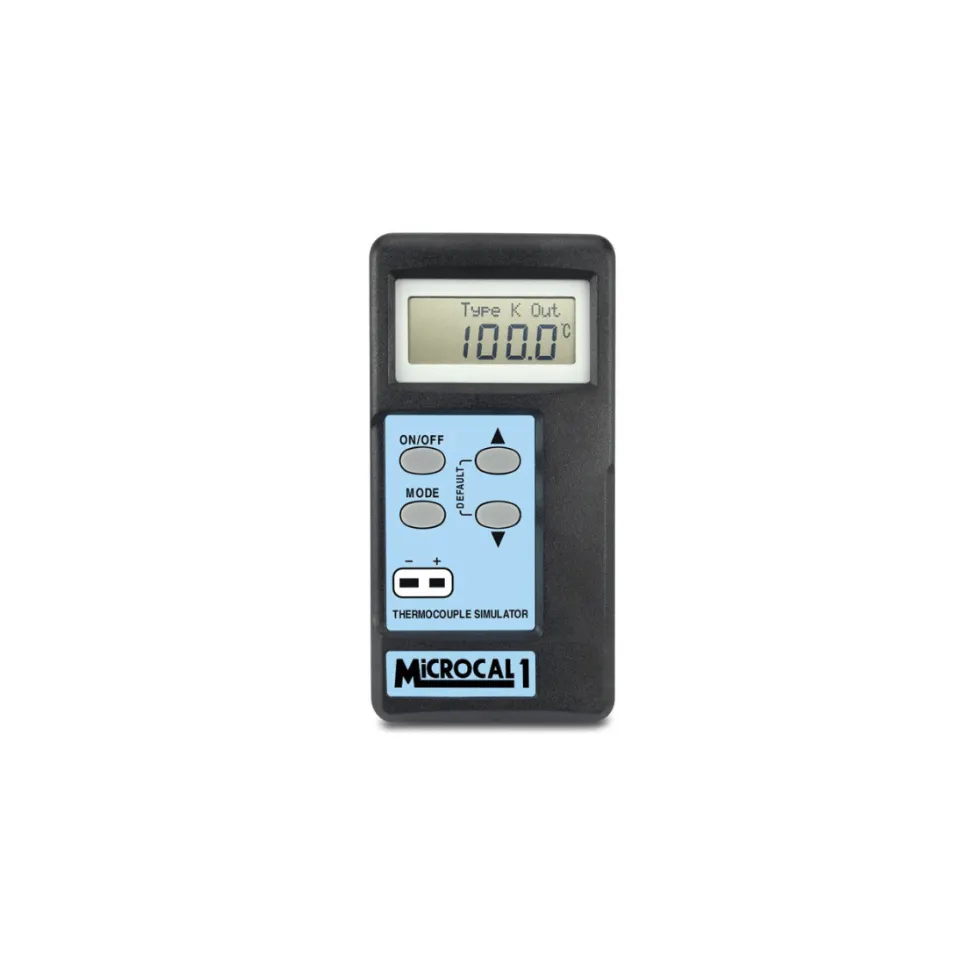

The MicroCal 1 Thermocouple Simulator is designed to streamline the routine process of verifying thermometer accuracy. This versatile calibrator simulates specific temperatures, allowing you to test thermocouple types K, J, T, R, N, S, and E without requiring additional equipment or complex conversion charts. For added functionality, the MicroCal 1 Plus model can both measure and simulate temperature.
Key features of the MicroCal 1 include a custom 10mm LCD display with an alpha-numeric line that provides clear prompts when adjusting settings. Users can select parameters such as °C/°F, auto power-off (enable/disable), cold junction compensation (internal/external), and display contrast for enhanced usability.
An optional lead set is available, containing seven 1-metre PVC leads, each equipped with miniature plugs to match the K, J, T, R, N, S, and E thermocouple types. Every MicroCal unit is supplied with a 1-metre type K PVC thermocouple lead with miniature connectors and includes a five-point (type K) UKAS Certificate of Calibration. This certificate details deviations from standards across specific temperature points.
Thermocouple Ranges:
Type K: -200 to 1372°C Type J: -200 to 1200°C Type T: -270 to 400°C Type R: 0 to 1768°C Type N: -200 to 1300°C Type S: 0 to 1768°C Type E: -140 to 1000°C
All thermocouple specifications comply with BS EN 60584-2:1993 standards, ensuring reliable performance and accuracy in various applications.
Key Features
Made to order
Comes with a 5-Point UKAS Calibration Certificate
Tests thermocouple type K, J, T, R, N, S & E thermometers
Efficiently check thermometer accuracy
Specifications
Range
Thermocouple type K - range -200 to 1372°C
Thermocouple type J - range -200 to 1200°C
Thermocouple type T - range -270 to 400°C
Thermocouple type R - range 0 to 1768°C
Thermocouple type N - range -200 to 1300°C
Thermocouple type S - range 0 to 1768°C
Thermocouple type E - range -140 to 1000°C
Temperature Points
12 adjustable presets
Accuracy
±0.3°C (dependant on thermocouple type)
Battery
2 x 1.5 volt AAA
Battery Life
300 hours
Sensor Type
Thermocouple (Selectable: Type K, J, T, R, N, S & E)
Dimensions
35 x 73 141mm
Weight
175 grams
Case Material
ABS Plastic
Country of Manufacture
UK
Guarantee
2 Years
Measurement Scale
Celsius/Fahrenheit
Certification
UKAS Calibration Certificate
